Grading Plans: The Blueprint for How a Site Works

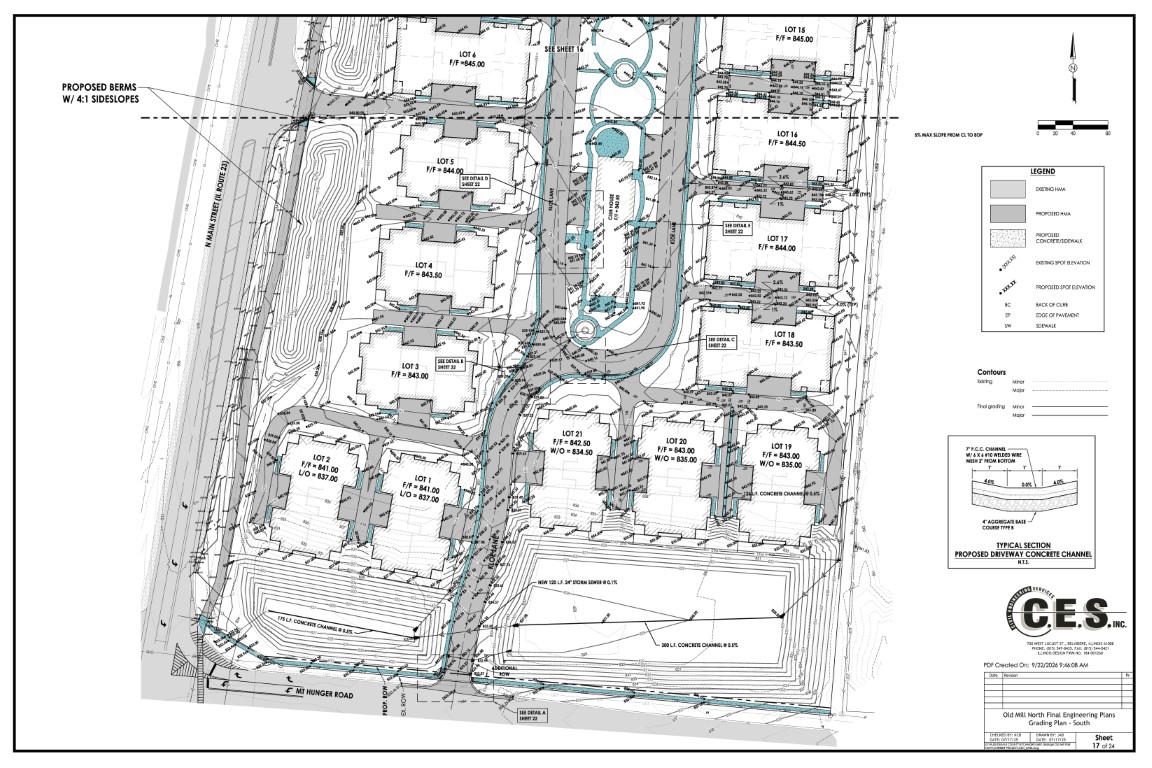

If you've ever looked at a civil engineering plan set, you've probably noticed the Grading Plan. It may look like a sheet covered in numbers, arrows, lines, and abbreviations, but there's a lot more going on than meets the eye.

For the engineer designing the project, those numbers tell a story. They show how the parking lot will drain, how a sidewalk will meet a building entrance, where the high and low points will be, and how all of the different pieces of the site will fit together.

The challenge is taking a three-dimensional design and communicating it clearly on a two-dimensional sheet of paper. That's what makes the Grading Plan so important.

It's where the design on the computer becomes something that can actually be built in the field.

Every elevation has a reason for being there. A finished floor elevation establishes where the building sits. Spot elevations establish the slope across a parking lot. A high point tells us where drainage begins to split in different directions. A slope arrow shows which way the water is intended to go.

And yes, when it rains, all of those little numbers matter.

Stormwater doesn't just randomly find its way across a finished site. Good grading gives it a path. Water is directed toward catch basins, storm sewers, swales, detention facilities, or other planned drainage areas. Our job is to design those grades so the site works the way it is supposed to.

Small Changes Can Make a Big Difference

One of the things we spend a lot of time thinking about during the design process is how small changes in elevation can affect the finished project.

A few tenths of a foot might not sound like much. On a grading plan, though, that small difference can change a slope… and that can change where water goes.

For example, imagine a parking lot designed to drain toward a catch basin. The elevations across the lot are carefully calculated so that water moves toward that inlet. Change one elevation, and suddenly water that was supposed to reach the catch basin now flows somewhere else or stays put and waits.

That's how you can end up with a parking lot holding water hours after a storm, while a catch basin is sitting just a few feet away.

The same attention to design grades goes into sidewalks, accessible parking, curb ramps, level landings, driveways, and building entrances. Grading isn't simply about getting water off the pavement & sidewalks. It's about making the entire site work together.

Speaking the Language of a Grading Plan

There is quite a bit of information packed onto a grading plan, so engineers and contractors rely on common abbreviations to communicate efficiently. Here are some of the terms you are likely to see:

Once you know what these numbers and abbreviations mean, a grading plan starts to make a lot more sense. What may initially look like a complicated collection of numbers and arrows, is really a set of instructions for how the finished site is designed to drain.

And that's an important distinction. A good grading plan isn't just about getting the math right. It needs to communicate the design clearly enough that the contractor can take it from the plan sheet to the job site and know what we're asking them to build.

That's something we take seriously. We put a lot of thought into how the grades on a project work together—not just on paper, but in the real world. We want the finished site to drain properly, provide safe and accessible routes, tie into existing conditions, and work the way it was designed to work.

Because when the next storm comes through, the best grading plan is the one you don't have to think about.

The water goes where it was designed to go.
